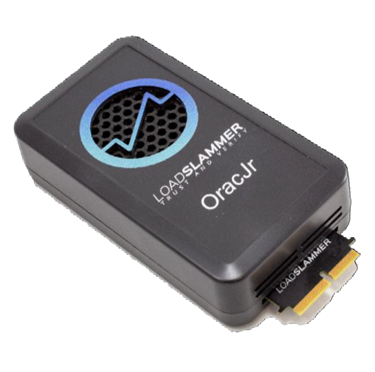

LoadSlammer Pro OracJr

DATE：2023-02-14 SRC：

LoadSlammer Pro OracJr with Max Current Range of 1500A, 1500W made to be used with LoadSlammer Active Adaptors. Continuous power output Active Adaptors.

Powered by a 24V barrel jack and connected by a USC-C. Also known as “The Brain”, the LSPOracJr controls the active load cell adaptors. Active load cell adaptors are typically designed specifically for custom CPU/ ASIC deployments.

Included in the Box

·LoadSlammer Pro Orac-Jr Device

·USB 2.0 type-A to type-C cable

·24V Power Adapter

·North American Power Cord

·Active Adapter Cable to Orac-Jr

Parameter		Min	Typ.	Max	Unit
Timing Characteristics
Rise Time			40		nS
On Time Range		7.5μ		N/A	Sec

Load Characteristics
Current Range		5		500	A
Current Resolution			1		A
Current Output Accuracy			5		%
Input Voltage Rating		0.6		2.0	V
Current Sense Output
Conversion Ratio		50		250	A/V
Max Current	single device		1000		A

Current Readout Accuracy			5		%
Sampling System
Sampling Rate				10	MSPS
Bandwidth			5		MHz
Capture Depth			24		kPoints
Power Dissipation Characteristics
Continuous Power Dissipation				1000	W
Instantaneous Power Dissipation				1000	W
Device Connection
DUT Connector	Vertical	HSEC8-140-01-S-DV-A
	Right Angle	HSEC8-140-01-L-RA
	Edge Mount	HSEC8-140-01-S-D-EM2
	Keepout Drawing and Pinout	https://loadslammer.com/connector/
Non-Isolated	LoadSlammer Pro Orac-Jr must be used with an active adapter that has a positive voltage. The USB data connection is non-isolated, this effectively grounds the DUT’s ground.
