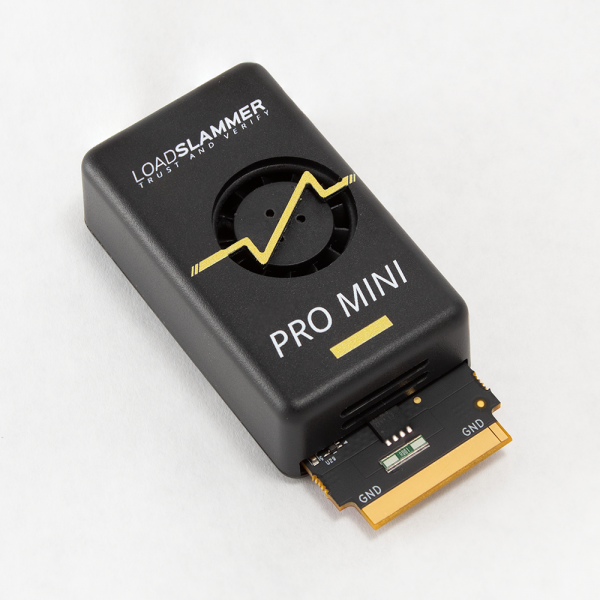

LoadSlammer Pro Mini 200 with Current Range of 5A to 100A. Suitable for most medium power applications. Our most popular device in the mini series. Kit includes power and data cables.

?LoadSlammer Pro Mini 08(1A to 4A)
?LoadSlammer Pro Mini 40(1A to 20A)
?LoadSlammer Pro Mini 200(5A to 100A

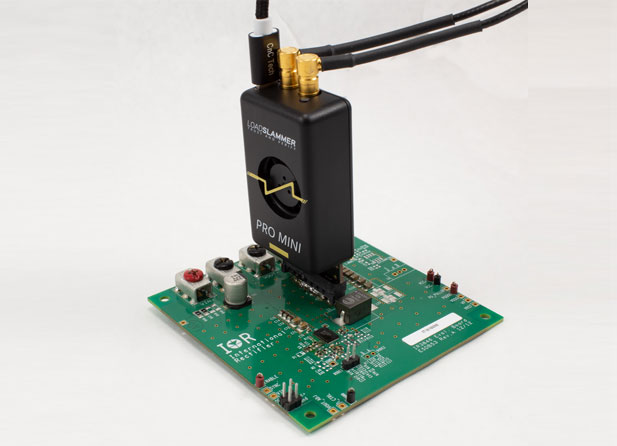

The LSP200 is a USB-C powered handheld transient load testing tool. The user-friendly GUI allows for fast and exhaustive testing. Setup is quick and intuitive.
Voltage and current measurements are captured for every test taken. Realtime current is displayed on the GUI and via SMB situated on top of the device. There is no need for additional test equipment to perform testing of the voltage for transient behavior. Both stimuli and measurements are generated and measured within this handheld device.

Features
100A DC pulse loading, 100mA step
200A/us conversion rate
Programmable conversion rate
Scalable, up to 10 can be added in parallel
Arbitrary impedance waveform generator
Integrated 4D test, frequency, duty cycle, current
Supplier specific test suite
Compatible with inserters and adapters
Expansion ports enable other functions
Software Options
Automatic phase stress test
Large signal impedance analysis up to 5 MHzReal-time oscilloscope

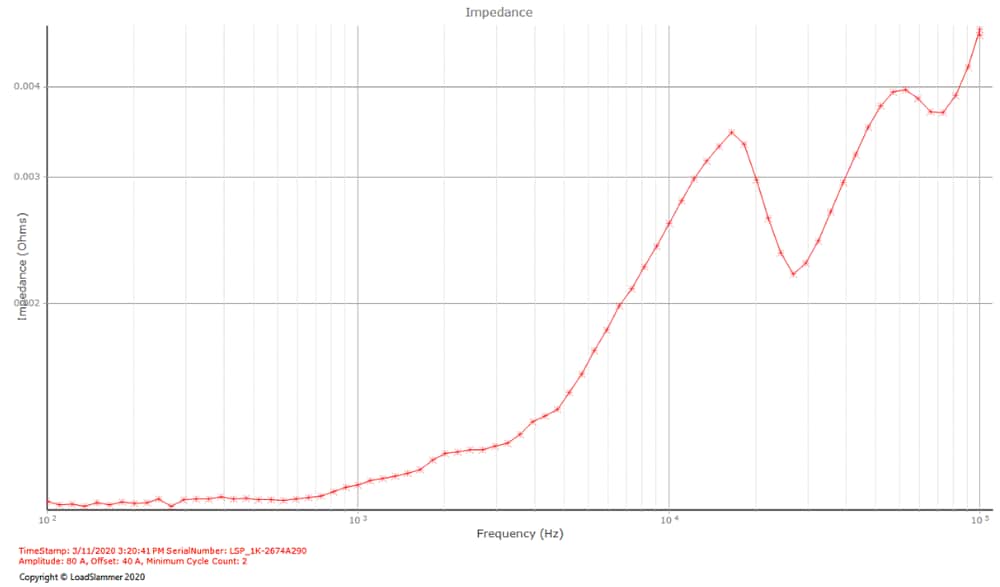

Performance Chart

Included in the Box

·LoadSlammer Pro Mini Device

·USB 2.0 type-A to type-C cable

      Datasheet ：LoadSlammer_LSP200_Pro_Flyer_R4-1839941.pdf
