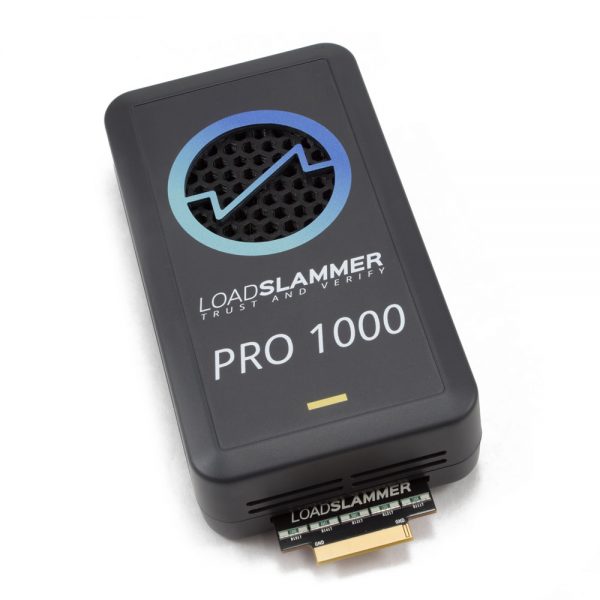

LoadSlammer Pro 1000

DATE：2021-07-25 SRC：

LoadSlammer Pro 1000 with Current Range of 1A to 500A.

Suitable for high power CPU transient load testing. Kit includes power and data cables.

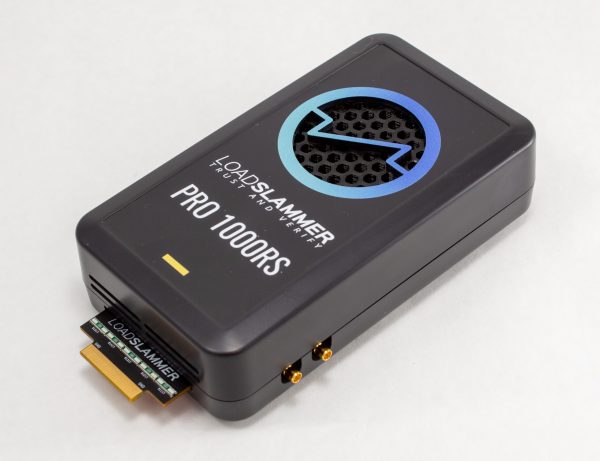

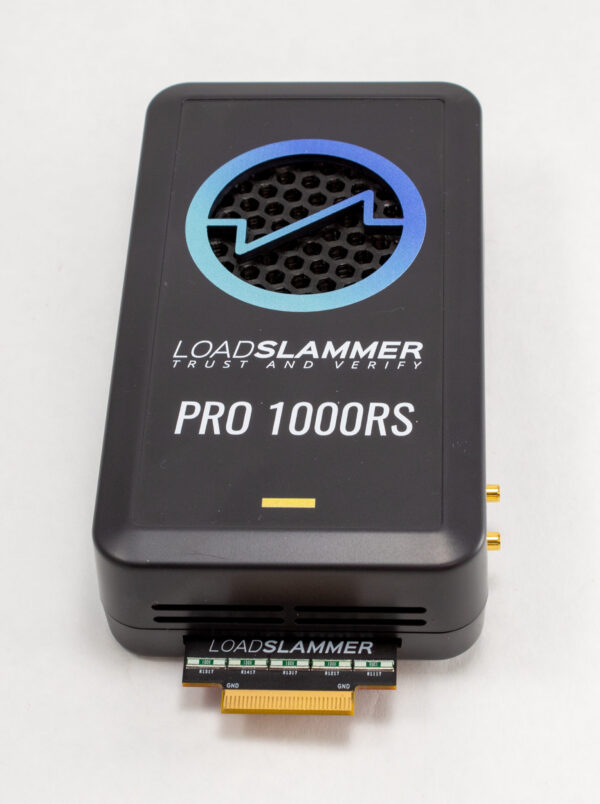

LoadSlammer Pro 1000 Remote Sense

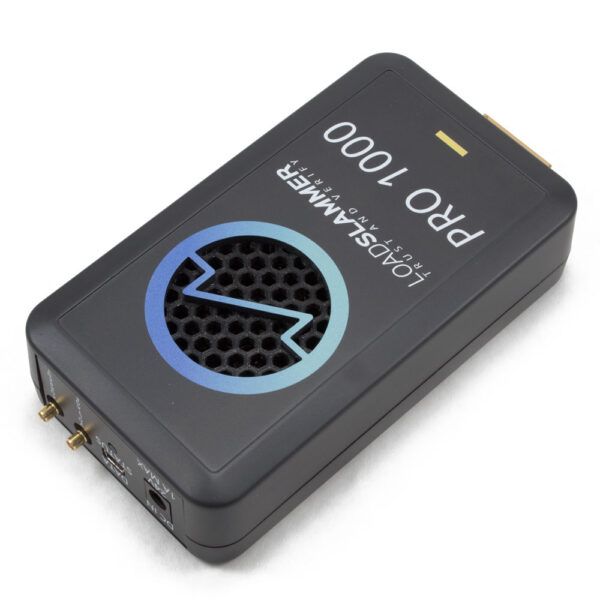

Powered by a 24V barrel jack and connected by a Mini-B USB. Used for testing of CPU/ GPU/ FPGA/ Network Processing Engine core voltages. Each unit can test 500A with current resolution of 1A, it can slew greater than 3200A/us. The LSP1000 is a scalable solution. Three LSP1000 can be connected in parallel to test 1500A, 10,000A/us. Voltage and current measurements are captured for every test taken. Realtime current is displayed on the GUI and via SMB situated on top of the device. There is no need for additional test equipment to perform testing of the voltage for transient behavior. Both stimuli and measurements are generated and measured with this device.

What is included in the box:
The LSP1000 Device
3ft USB-A to Mini USB-B Cable
24V AC Power Supply
LSP1000 Stabilizer

Parameter		Min	Typ.	Max	Unit
Timing Characteristics
Rise Time		180	200		nS
On Time Range		7.5μ		100m	Sec
Off Time Range		7.5μ		10	Sec
Load Characteristics
Current Range		5		500	A
Current Resolution			1		A
Current Output Accuracy			5		%
Input Voltage Rating		0.6		2.0	V
Current Sense Output
Conversion Ratio		50		250	A/V
Max Current	single device		500		A

Current Readout Accuracy			5		%
Sampling System
Sampling Rate				10	MSPS
Bandwidth			5		MHz
Capture Depth			24		kPoints
Power Dissipation Characteristics
Continuous Power Dissipation				25	W
Instantaneous Power Dissipation				500	W
Device Connection
DUT Connector	Preferred	Samtec HSEC8-130-01-L-DV-A-WT-K-TR
	Surface Mount Only	Samtec HSEC8-130-01-L-DV-K-TR
	Keepout Drawing and Pinout	https://loadslammer.com/connector/
Non-Isolated	LoadSlammer Pro must be used with a regulator that has a positive voltage. The USB data connection is non-isolated, this effectively grounds the DUT’s ground.

數(shù)據(jù)表 ：LoadSlammer_LSP1000_Pro_Flyer_R4-1852969.pdf
