ProGrAnalog’s SP5 PDN Test Tool, an approved alternative to AMD’s SP5 SDLE, features an Active Module FFED that plugs into AMD’s SP5 test socket and is controlled by a LoadSlammer ORAC ADJ device. The test suite is encapsulated within a simple to navigate, SP5 GUI that incorporates AMD’s SP5 test requirements including automatic test sweeps configured with static and dynamic testing cycles and automatic output report generation.

Feature：

TK-AM501 supports SP5 socket, Infrastructure A – E
TK-AM502 supports SP5 socket, Infrastructure A – G
SP5 FFED* no need for separate back plate
Only One FFED needed (minimal SP5 socket insertions)
Supports Continuous AC and DC Testing
Up to 10 times faster test time with automated test suites**
Automatic PDF Report Generation
Accurate to 1%
Approved by AMD
Works with any SP5 cooling solution
Telemetry reporting of SVI3
Additional SVI 3 debug SW Applications
Includes two SVI3 (up to 50MHz) MasterBlasters
Save, file share and recall of waveforms
Save, file share and recall of test vectors
Q1 2023: CSV export of wave form data, API, 3D Sweep
* FFED (Form Factor Equivalent Device)** Compared to SDLE

Availability

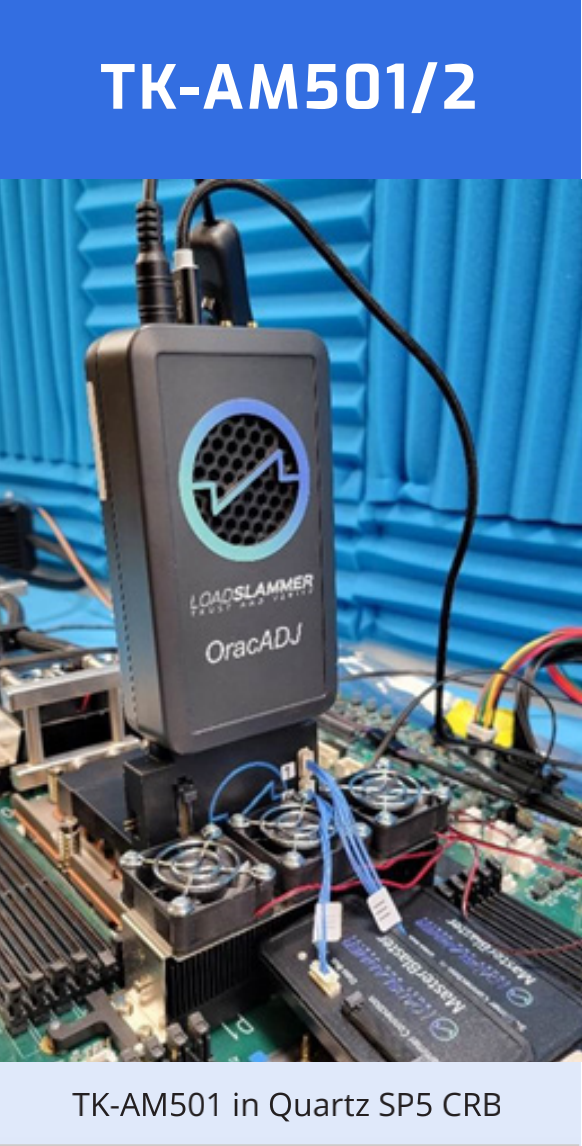

TK-AM501 for AMD SP5 socket Infrastructure A - E

TK-AM501-CS with cooling solution optional

TK-AM502 for AMD SP5+ socket Infrastructure A - G (Q1 2023)

TK-AM502-CS with cooling solution optional
