Timing Characteristics

Rise Time

40

nS

On Time Range

7.5μ

N/A

Sec

Load Characteristics

Current Range

5

500

A

Current Resolution

1

A

Current Output Accuracy

5

%

Input Voltage Rating

0.6

2.0

V

Current Sense Output

Conversion Ratio

50

250

A/V

Max Current

single device

1000

A

Current Readout Accuracy

5

%

Sampling System

Sampling Rate

10

MSPS

Bandwidth

5

MHz

Capture Depth

24

kPoints

Power Dissipation Characteristics

Continuous Power Dissipation

1000

W

Instantaneous Power Dissipation

1000

W

Device Connection

DUT Connector

Vertical

HSEC8-140-01-S-DV-A

Right Angle

HSEC8-140-01-L-RA

Edge Mount

HSEC8-140-01-S-D-EM2

Keepout Drawing and   Pinout

https://loadslammer.com/connector/

Non-Isolated

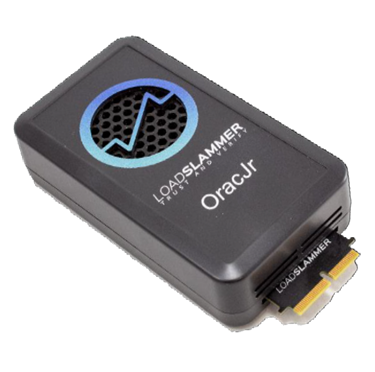

LoadSlammer Pro Orac-Jr must be used with an active adapter that has a   positive voltage.    The USB data connection is non-isolated, this effectively   grounds the DUT’s ground.
