Faster PDN Verification

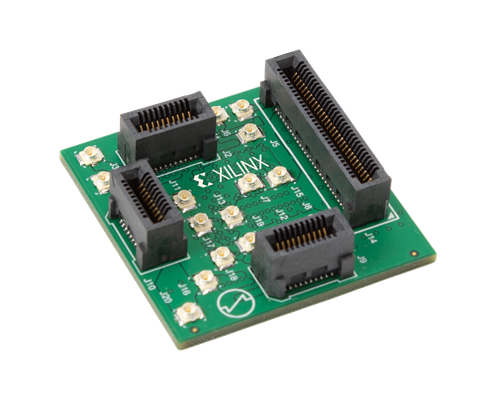

PDN Verification consumes the majority of the testing time of a new system. Xilinx PDN kits from LoadSlammer are designed specifically to reduce the cost and time of development.
Transient load testing for power management devices is critical to ensuring data integrity at the lowest possible power consumption. Analog and Digital DC-DC controllers have long been proven to be non-linear in behavior. Large Signal validation of power supply performance is critical to get an understanding of system performance.
Key Features
Tests Designed Specifically for Xilinx Devices
Large Signal Time and Frequency Domain Testing

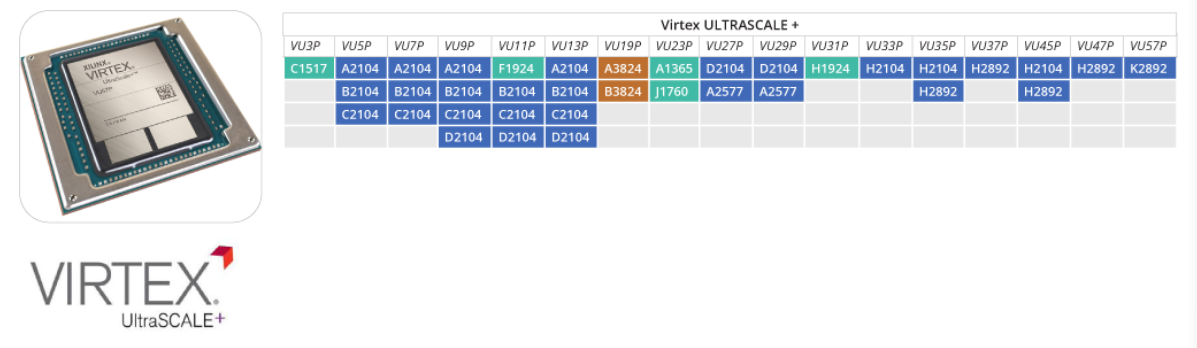

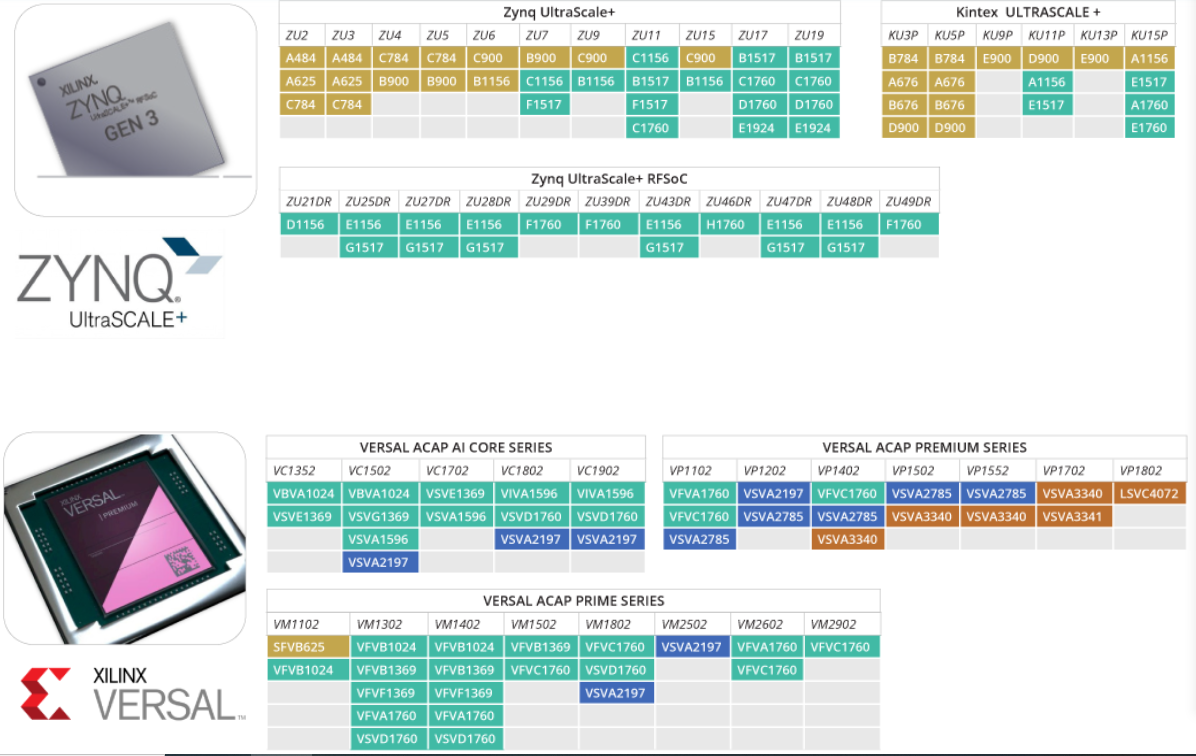

Footprints for every Xilinx Device
Integrated 4D testing, frequency, duty cycle, current
Vendor Specific Test Suites
Testing for VCCINT, Cross Regulation, Transceiver Power Fidelity
Xilinx PDN Emulation specific to each package
Pass/ Fail criteria tests based on S-Parameter extraction of Xilinx packages and user requirements
